Structural beam welding
From beam to built.
Patagonia BeamPro is the first welding system with automated AI software for structures and columns. Automated welding without programming the robot. Perfect structures, without human intervention.
See BeamPro at FABTECH · Booth S44053
None
Programming required
2 hours
Operator training
Internet only
No extra hardware
Inspect the machine
Tap a glowing point.
Features published in the BeamPro brochure. Tap a glowing point or a row, then open the catalog.
Stiffeners and connectors in one operation
BeamPro was developed exclusively for the welding of structural profiles: H and W beams, HSS columns, channels, and fabricated beams. Stiffeners and connectors are welded in a single operation for agile, standardized production.
Modular configurations
BeamPro is available as Single Station + 1 Robot, Double Station + 1 Robot, or Double Station + 2 Robots — sized to the length and throughput of the members you run.
Perfect ARC® on every station

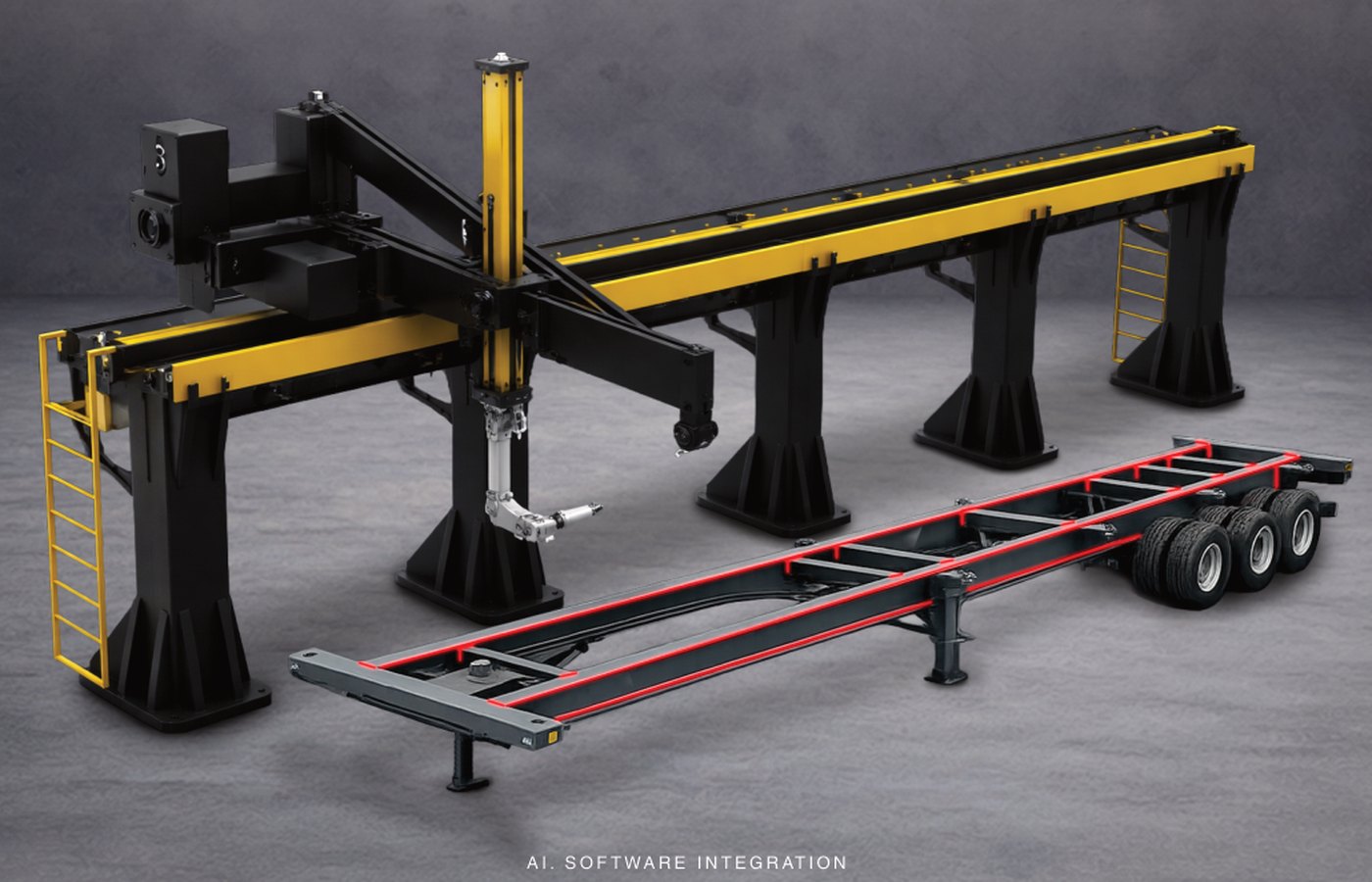

The same AI welding stack as FramePro: Panasonic TAWERS G4, Touch Sensor, ARC Sensor, and Perfect ARC®. No programming. Two hours of training. Internet only.
How the system sees the weld
Panasonic welding robot
A global leader in welding robotics, manufactured entirely in Japan. The TAWERS G4 series offers the only integrated communication system on the market, with communication speeds 250 times faster than conventional systems. The patented collision-avoidance system prevents TCP loss.

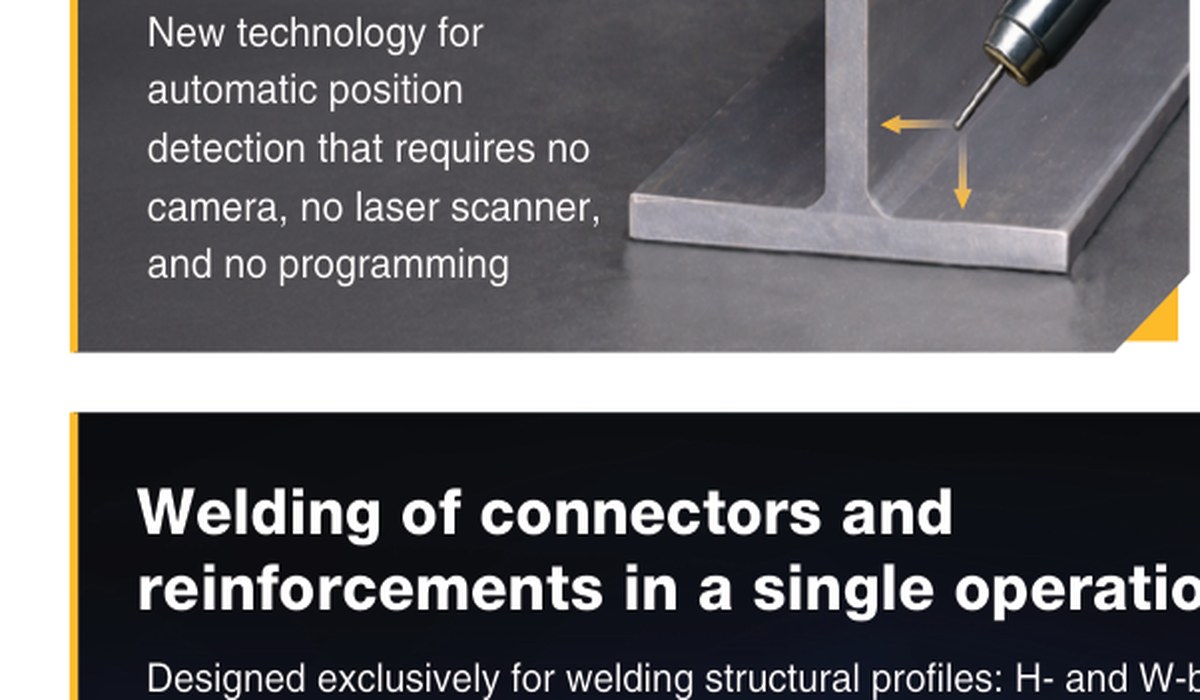

Touch Sensor
New technology for automatic position detection that requires no camera, no laser scanner, and no programming.

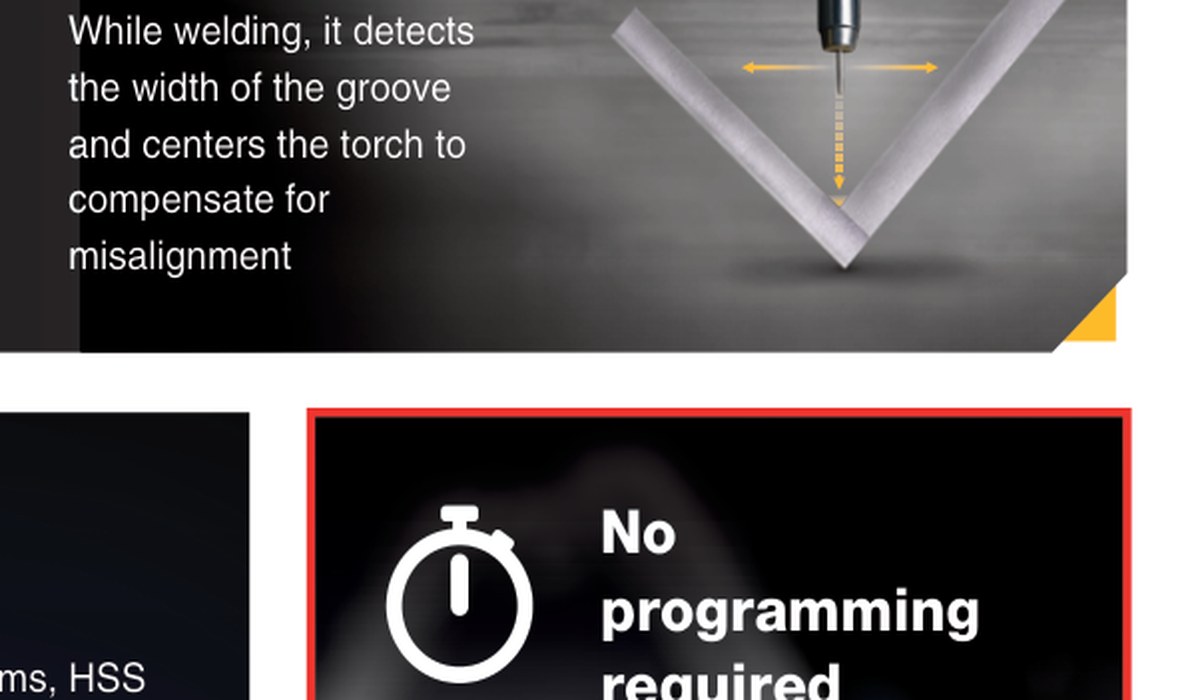

ARC Sensor
While welding, it detects the width of the groove and centers the torch to compensate for misalignment.
Perfect ARC® — AI-powered welding software
Integrated system with AI-powered welding software. No camera or weld scanner required. No devices required. Automated welding without programming the robot.
Published capabilities
- Panasonic TAWERS G4 welding robot, manufactured in Japan
- Touch Sensor — no camera, no laser scanner, no programming
- ARC Sensor groove tracking during the weld
- Stiffeners and connectors welded in a single operation
- Single station + 1 robot · Double station + 1 robot · Double station + 2 robots
- No programming required · 2 hours of training · internet connection only
Patagonia BeamPro compared with conventional welding
| Feature | Patagonia BeamPro | Manual welding | Robot with camera |
|---|---|---|---|
| Programming time | None | N/A | High |
| Compatible welding equipment | Highest | Highest | Limited |
| Environment preparation | Not required | Requires preparation | Requires preparation |
| Operator skill level | Low | High | Very high |
| Requires devices (flexibility) | Not required | Not required | Requires device |
| Efficiency loss due to sensing | Low | N/A | High |
Ideal applications
- Structural beams
- Columns
- H and W beams
- HSS columns
- Channels
- Fabricated beams
