Press-brake automation
Precision. Speed. Automation, delivered.
An integrated robotic bending cell designed to deliver consistent accuracy, higher throughput, and reliable performance across every production cycle. Available in Small (ER45-2200), Medium (BR80-2565), and Large (BR130-2865) configurations.
See Robotic Bending Cells at FABTECH · Booth S44053
Inspect the machine
Tap a glowing point.
Features published in the Robotic Bending Cells brochure. Tap a glowing point or a row, then open the catalog.
See it run
The cell in motion.
Protective enclosure
The bending cell is fully enclosed by a robust metal mesh safety fence that surrounds the machine on all sides. This protective enclosure prevents unauthorized access to the working area, reduces the risk of accidents, and ensures safe operation without affecting process visibility.
Automatic gripper exchange
The automatic gripper change system enables fast and safe tool exchange without operator intervention. This solution minimizes downtime between processes, increases production flexibility, and allows easy adaptation to different part geometries and sizes within the same working cell.
Custom grippers
Custom-designed grippers are developed specifically according to the geometry and requirements of each part. This solution ensures secure and precise gripping throughout the entire process, optimizing repeatability and reducing errors.
Bending software

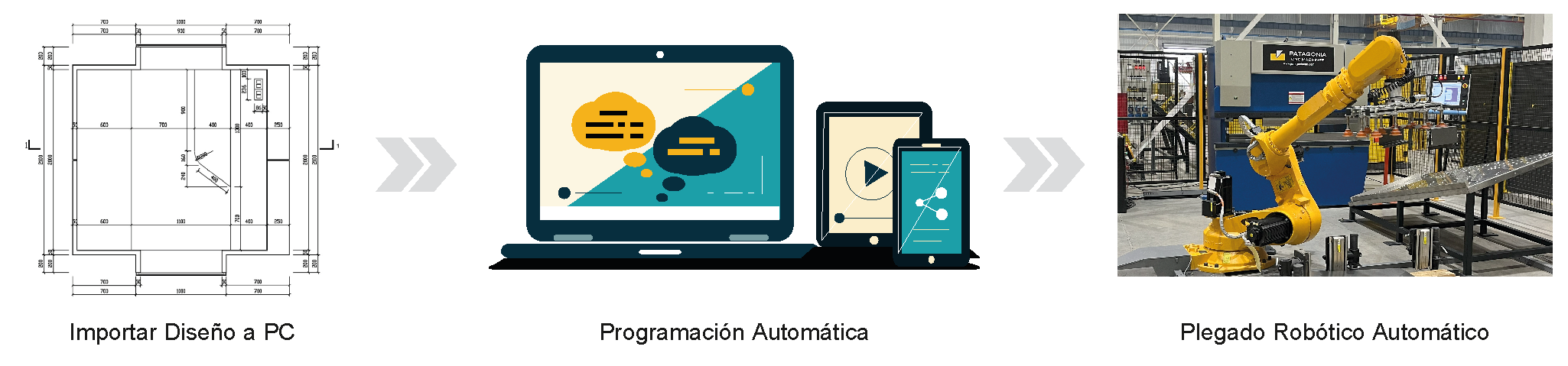

Advanced software ensures synchronization between the robot and the bending machine. It enables real-time monitoring of bending machine signals, tooling parameters, and bending speed. The system supports direct import of drawings, automatically converting them into robot bending programs. High-precision displacement sensors ensure accurate feeding. Workflow: Import drawings to PC → Program automatically → Automatic robot bending.
Configurations
Bending cell
Small-Sized · ER45-2200
Compact flexible bending unit for small-sized workpieces. BR45-2200 manipulation robot: high-speed performance, reliable payload, long reach. Laser safety barriers protect the user and the machine.
Bending cell
Medium-Sized · BR80-2565
6-axis bending robot optimized for bending working conditions. ER80B-2566 BD robot for high payload and extended reach. Fully synchronized with the press brake. Optional 7th-axis track and +10 CNC synchronous axes.
Bending cell
Large-Sized · BR130-2865
A specially designed bending robot for large-sized workpieces. High payload, extended reach, 3D control software for visualization, motion validation, collision prevention, and precise operational control.
Published capabilities
- Protective enclosure with metal mesh safety fence
- Automatic gripper exchange
- Custom-designed grippers per part geometry
- Robot fully synchronized with the press brake
- Optional 7th-axis linear track (medium cell)
- +10 CNC synchronous axes (medium cell)
- No folding movement programming (large cell) — control manages trajectories
- Automatic sheet-metal centering
- 3D control software for visualization, motion validation, and collision prevention
- ESTUN Argentina manipulation robots
Bending cell specifications
Figures as published in the Robotic Bending Cells catalog.
| Spec | Small · ER45-2200 | Medium · BR80-2565 | Large · BR130-2865 |
|---|---|---|---|
| Maximum load capacity | 45 kg / 99 lb | 80 kg / 175 lb | 130 kg / 286 lb |
| Maximum range | 2200 mm / 86 in | 2565 mm / 86 in | 2865 mm / 86 in |
| Repeatability | ±0.03 mm | ±0.04 mm | ±0.04 mm |
Ideal applications
- Small-sized workpieces
- Medium-sized sheet metal
- Large-sized workpieces
- Low-batch / frequent part-change production
- Synchronized press-brake tending
